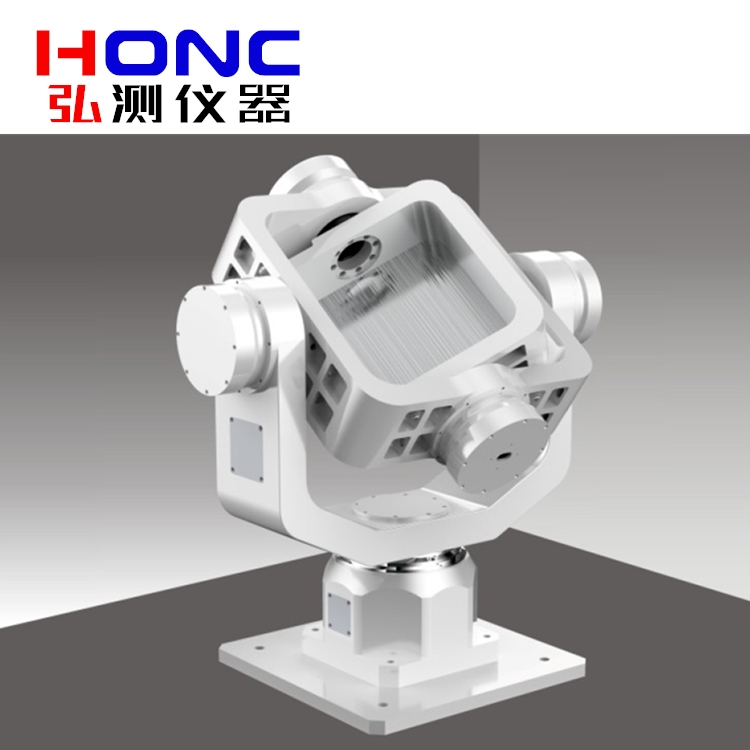

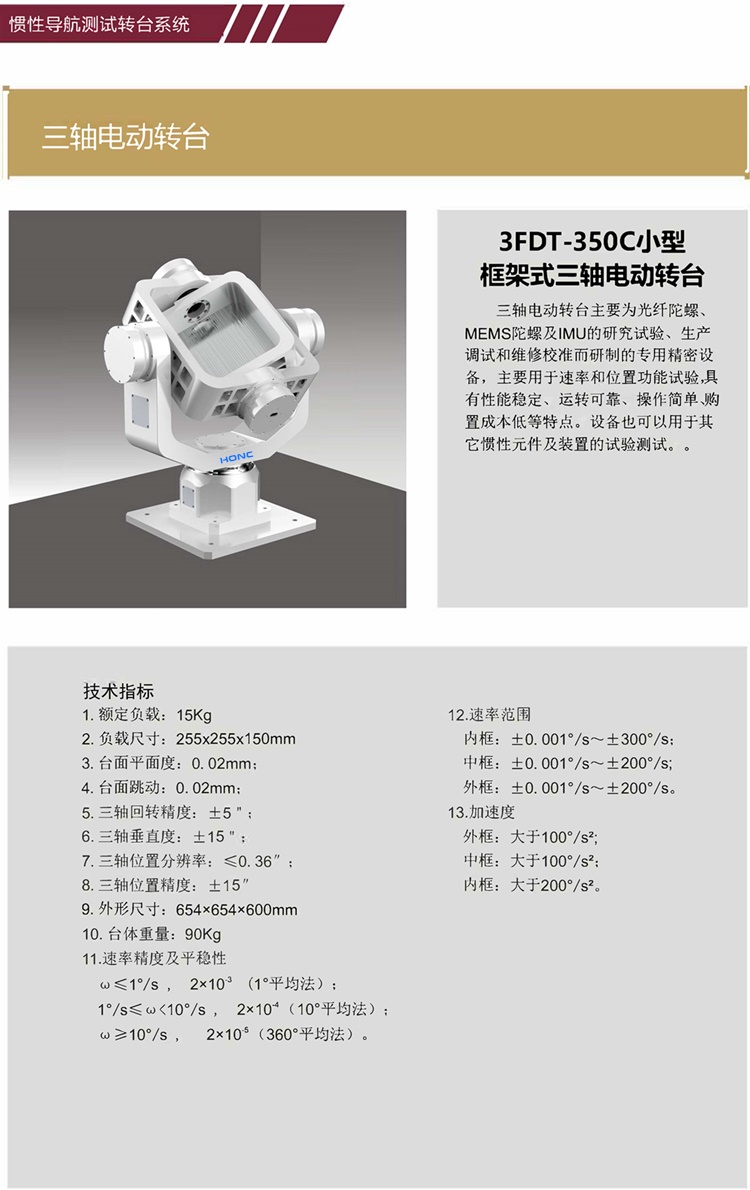

3FDT-350C型 小型框架式三軸電動轉臺【慣性導航測試轉臺】
3FDT-350C型 小型框架式三軸電動轉臺【慣性導航測試轉臺】
產品簡介 Product introduction
技術指標 Technical indicators
1.額定負載:15Kg;
2.負載尺寸:255x255x150mm;
3.臺面平面度:0.02mm;
4.臺面跳動:0.02mm;
5.三軸回轉精度:±5";
6.三軸垂直度:±15";
7.三軸位置分辨率:≤0.36″;
8.三軸位置精度:±15″;
9.外形尺寸:654×654×600;
10.臺體重量:90Kg;
11.速率精度及平穩性;
ω≤1°/s,2×10-3 (1°平均法);
1°/s≤ω<10°/s,2×10-4 (10°平均法);
ω≥10°/s,2×10-5 (360°平均法)。
12.速率范圍
內框:±0.001°/s~±300°/s;
中框:±0.001°/s~±200°/s;
外框:±0.001°/s~±200°/s。
13.加速度
外框:大于100°/s2;
中框:大于100°/s2;
內框:大于200°/s2;
